INSPECTO-D: Inspection & Cleaning Robot

INSPECTO-D is a high-tech mobile robot that allows quick and hassle-free narrow space inspection and cleaning. Suitable for air ducts maintenance to improve air quality while increasing safety and efficiency.

Brochure

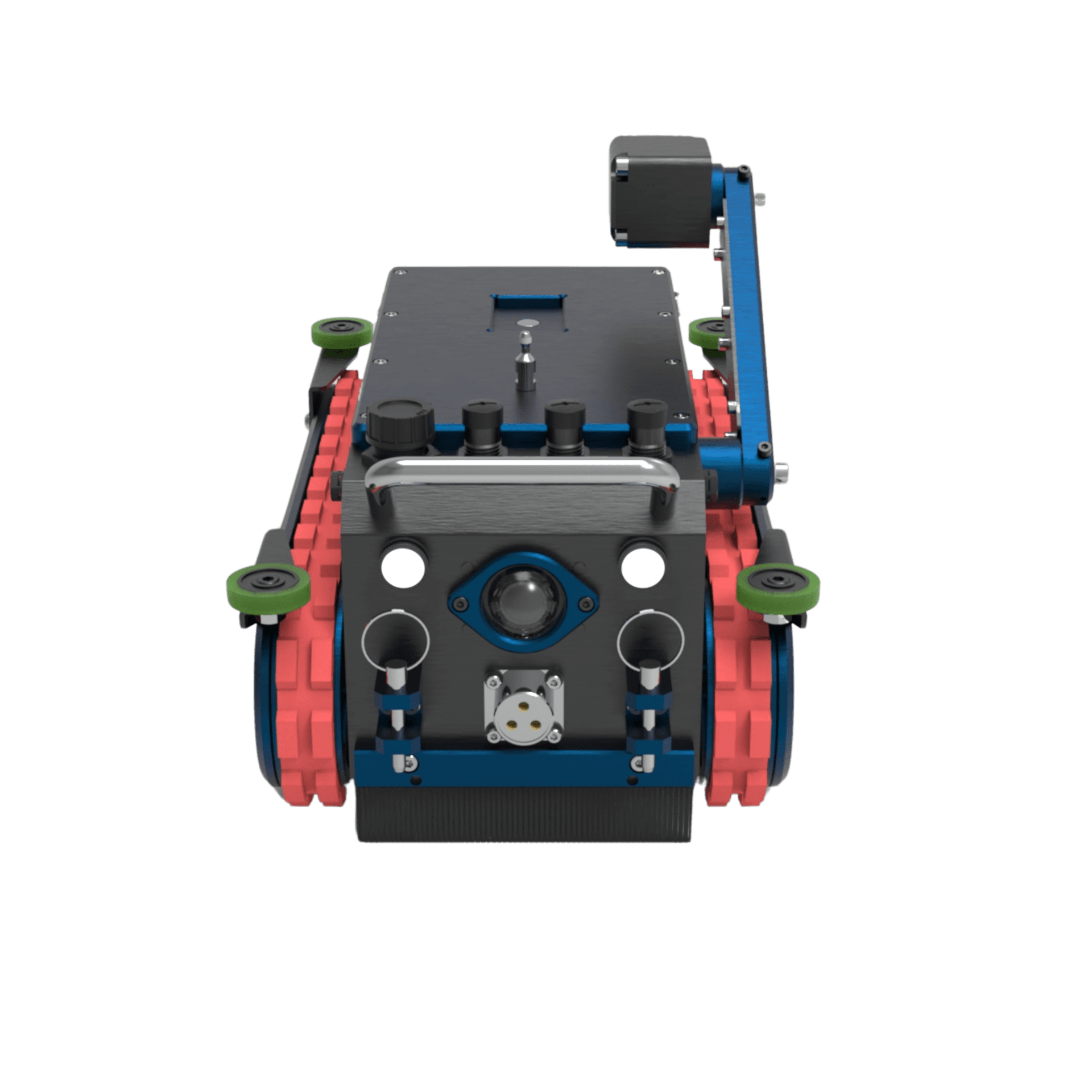

INSPECTO-D Robot

Technical Specifications

SpecificationDetails
Main Power SupplyAG 220-240V; 50-60Hz (Tethered)
Robot DimensionsH: 140 mm, W: 200 mm, L: 332 mm
Cameras2x Front Facing HD camera, 1x Rear Facing HD camera
SensorsTemperature sensor, Infrared sensor
LightingLED Lights (front & rear)

Modular Design

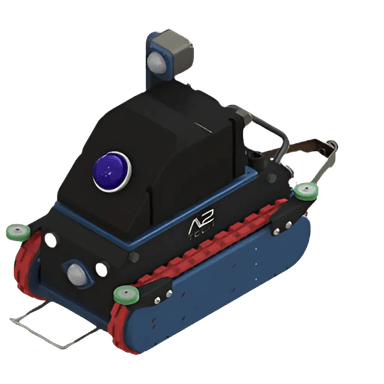

Mapping Module

Mapping Module

The Mapping Module uses LIDAR technology to create precise 3D maps of air ducts and pipelines.

Sensor Module

Sensor Module

The Sensor Module detects holes or obstacles within air ducts, ensuring potential issues for maintenance and repair.

Disinfection Module

Disinfection Module

The Disinfection Module uses a high-pressure air-blowing system to remove any remaining dust particles after the cleaning process.

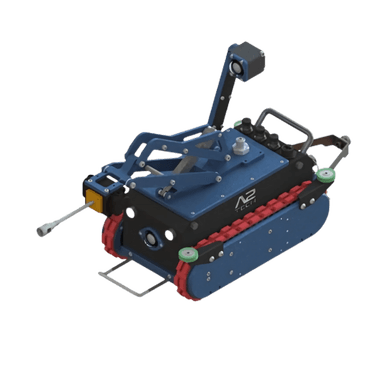

Cleaning Module

Cleaning Module

The Cleaning Module uses a brush system to efficiently clean dust from air ducts and pipelines.

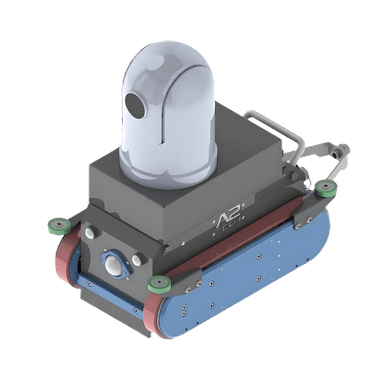

Inspection Module

Inspection Module

The Inspection Module is equipped with a PTZ camera for detailed visual assessments of air ducts and pipelines.

Who Can Use This Robot?

HVAC Companies: Ideal for inspecting and cleaning air ducts in residential and commercial buildings.

Industrial Facilities: Useful for maintaining ventilation systems in factories and warehouses.

Building Maintenance Teams: Helps maintain air quality and prevent clogging in HVAC systems.

Environmental Agencies: Supports improving air quality standards by ensuring clean ducts.

Features

AI Detection

AI Detection

Automated detection of issues in air ducts using AI-powered analysis.

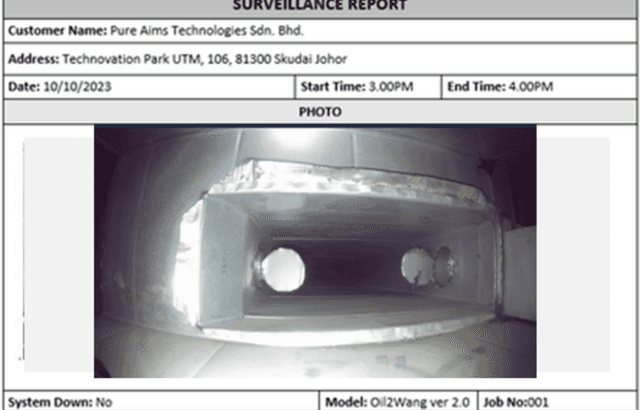

Automatic Report

Automatic Report

Detailed inspection reports automatically generated after each cleaning.

Demo Session

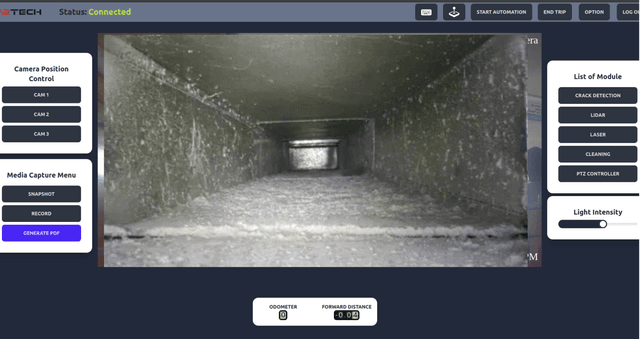

Inspecto D in action during a demo session.

Our Product & Service Categories

Purchase

Purchase

Buy the INSPECTO-D robot for permanent use in your facility.

Lease

Lease

Lease the robot for temporary use on your projects.

Service

Additional Service

Our engineers will visit your site to provide maintenance and support for your robot.
