X3CATOR-R: Early Reconnaissance Robot

The X3CATOR-R is a versatile early reconnaissance robot designed for hazardous environments. Equipped with advanced sensors, it excels in detecting hazardous gases like O2, H2S, CO, and LEL, along with radiation sources for HAZMAT operations.

Brochure

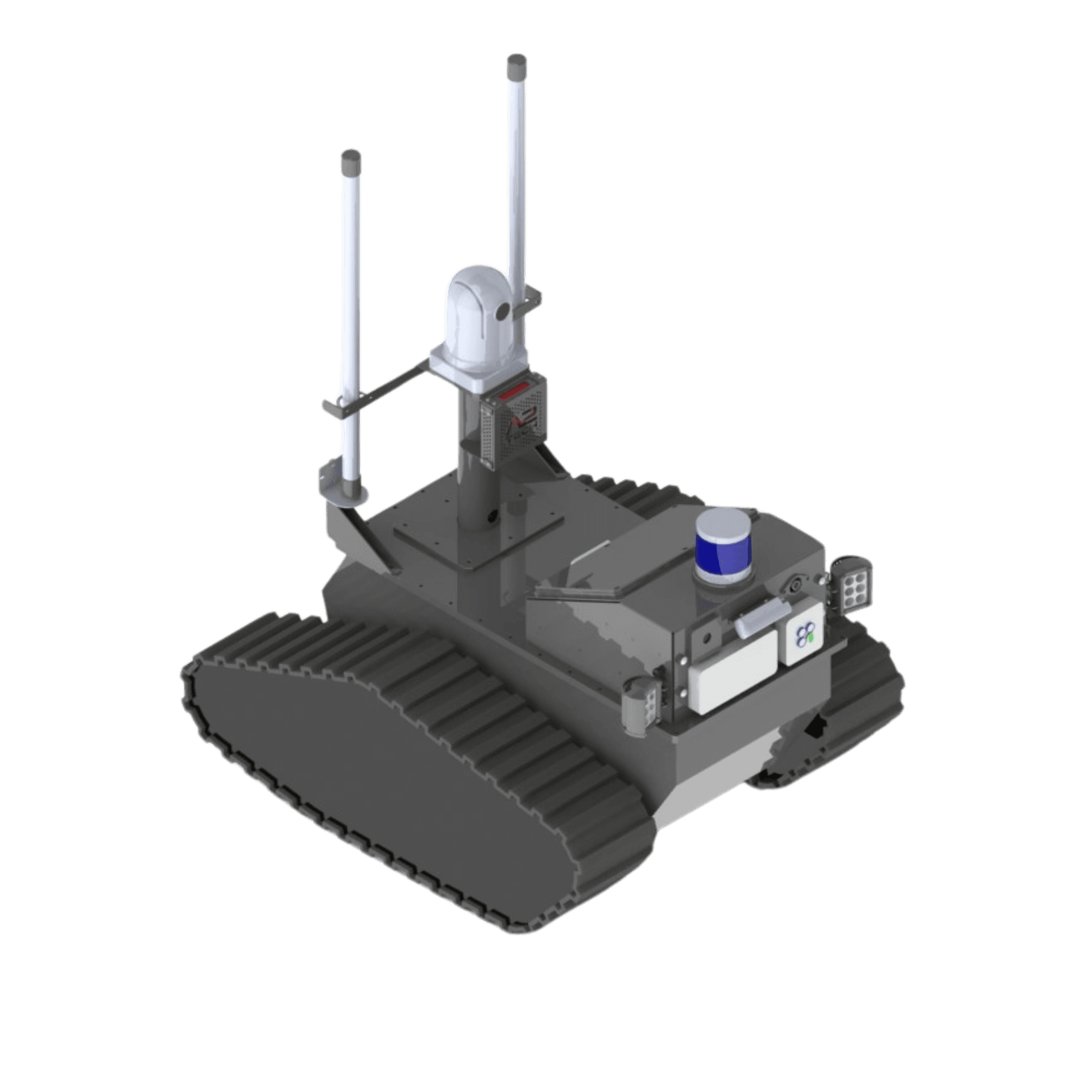

X3CATOR-R Robot

HAZMAT Operation

The X3CATOR-R robot is designed to operate in hazardous environments, not only detecting the presence of hazardous gases but also creating detailed environmental maps to aid rescue teams during operations.

Features

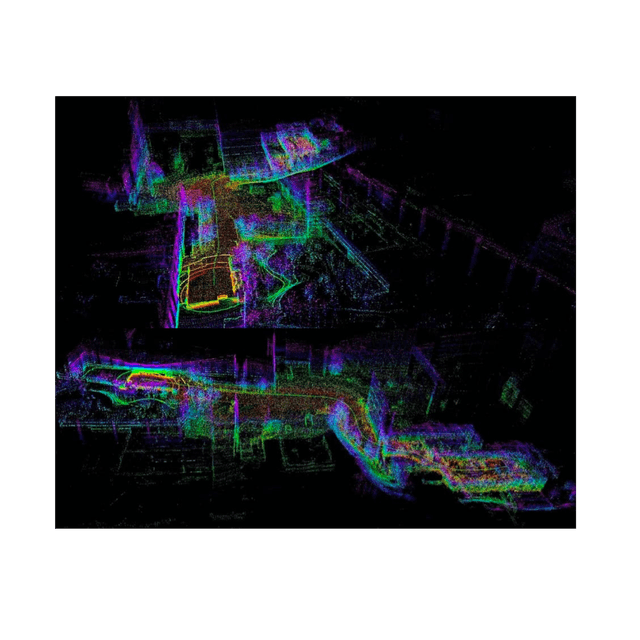

3D Lidar for Mapping

3D Lidar for Environment Mapping

The lidar sensor maps the area and records the radiation reading, as well as a 4 gas meter reading of O2, H2S, CO, and LEL.

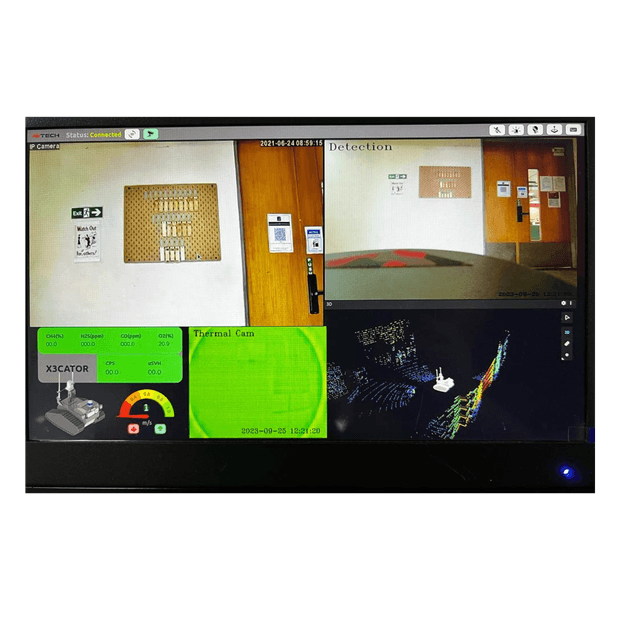

User Interface

User Interface

The robot can be controlled wirelessly, with a comprehensive UI/UX system designed to support remote operation in hazardous areas.

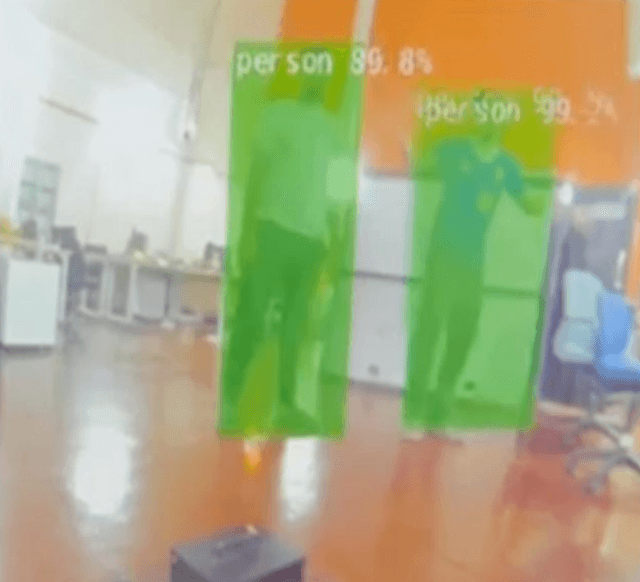

AI Detection

Identification of Survivor using AI

The robot uses AI-powered thermal and visual sensors to identify survivors and assess their condition.

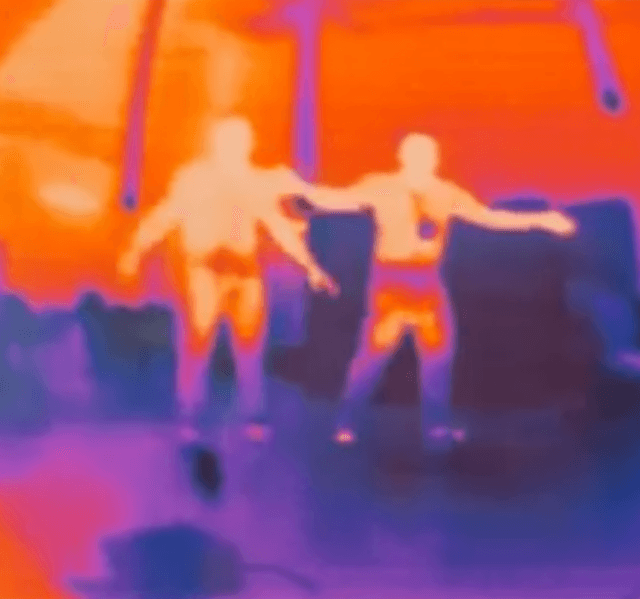

Thermal Camera

Thermal Imaging

The integrated thermal camera enables the detection of survivors even in low-visibility conditions.

Demo Session

X3Cator-R in action during a demo session.

Technical Specifications

SpecificationDetails
DimensionsWidth: 600 mm, Length: 900 mm, Height: 1000 mm
Power SupplyEfficient power distribution for motors, sensors, cameras, and communication modules
Control SystemsDual control modes: RC-based manual control and remote control using a custom control box (LOS: 10 km, NLOS: 1 km)
Communication1.4 GHz radio communication for long-range data transfer and control
Sensors360° camera, PTZ camera with night vision, thermal camera, depth cameras, gas detectors, radiation sensor
NavigationLidar, depth sensors for navigation and obstacle avoidance in low-visibility conditions
AI DetectionAI-powered detection for identifying survivors using real-time thermal and visual data
MobilityAll-terrain mobility for navigating hazardous and inaccessible environments
